Conventional PCBs

Conventional PCBs form electrical connections through via holes on conventional boards. After long-term development, process technology has evolved from single-sided PCBs to double-sided and multi-layer rigid PCBs.

Kinwong’s technical capabilities are as follows:

  • LAYER COUNT: SINGLE-SIDED / DOUBLE-SIDED / MULTI-LAYER
  • Max. delivered PCB size: 699mm*594mm
  • Max. copper weight (inner / outer layer): 12oz
  • Max. board thickness: 5.0mm
  • Max. aspect ratio: 16:1
  • Surface finishing: pure tin spraying, immersion gold, immersion silver, immersion tin, OSP, nickel-palladium-gold, and gold finger
Stack-up of Conventional PCB

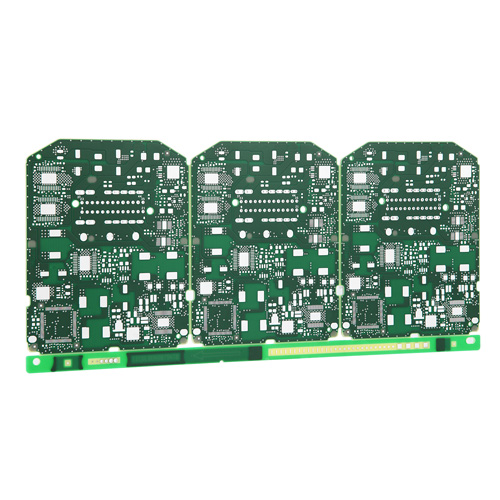

Conventional PCBs (2)

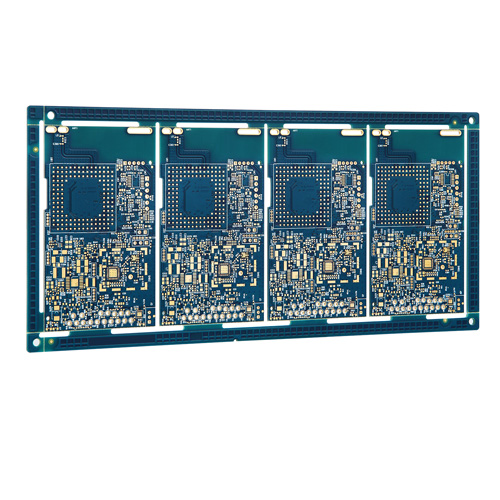

Conventional PCBs (1)

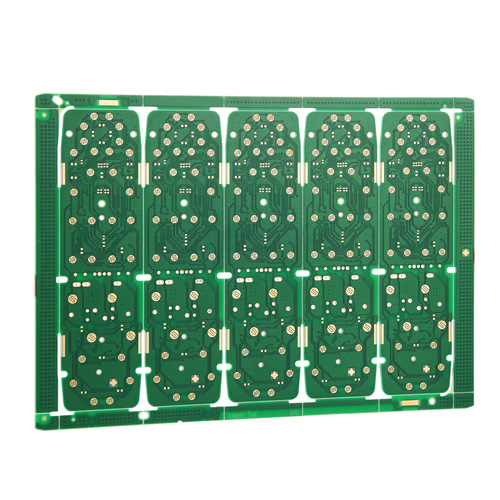

Conventional PCBs (3)
che

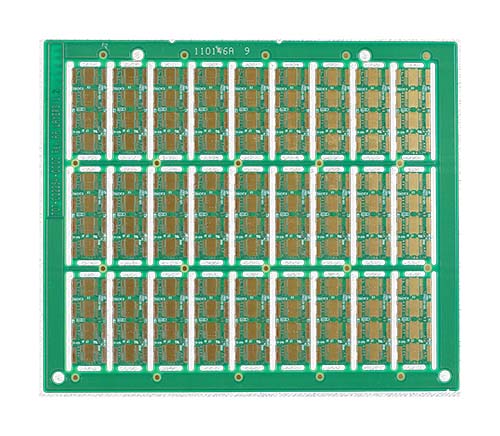

conventionalpcbs-2
Previous
Next

For more information about Kinwong’s capabilities, please contact one of our Field Application Engineers
