Copper Inlay

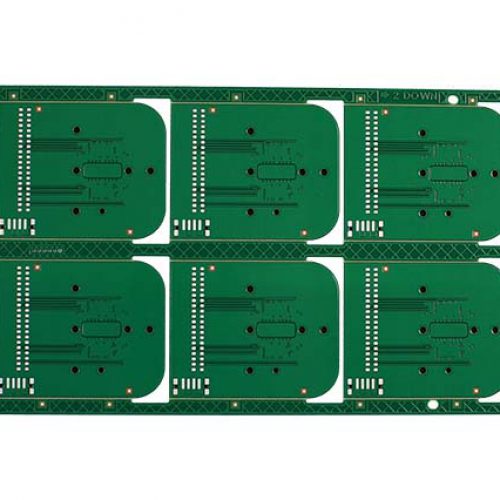

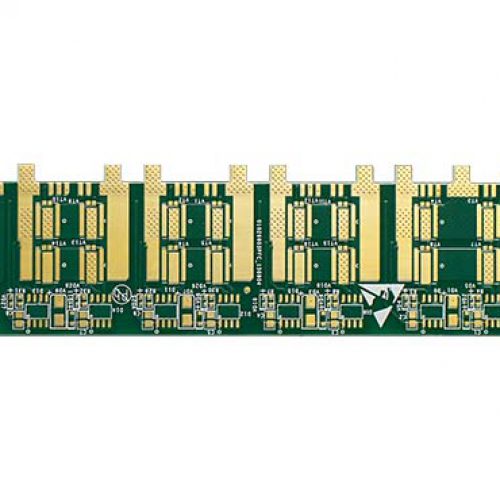

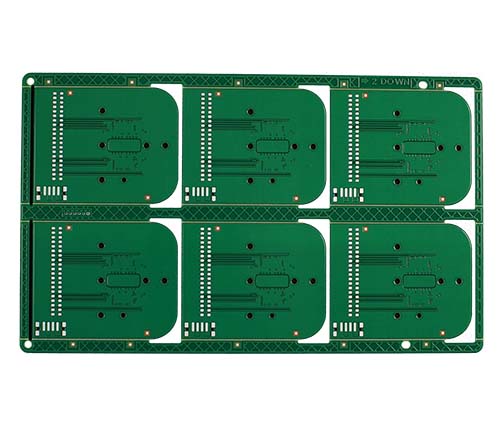

Copper Inlay allows the dynamics of FR4 designs and thermal management of MPCB. This is achieved by embedding copper inlays within the PCB. Kinwong has a wide range of types and capabilities for your design needs.

Kinwong capabilities are as follows:

  • Inlay Shape: “I”，“U”，“T”
  • Inlay Size(X*Y): 5mm*5mm~40mm*100mm
  • Inlay Thickness(Z): 0.5mm~2.5mm
  • Inlay Dimension Tolerance: X/Y axis：±50um; Z axis：±30um
  • Height Difference: ±30um
  • Inlay to Conductors: Min. 0.35mm

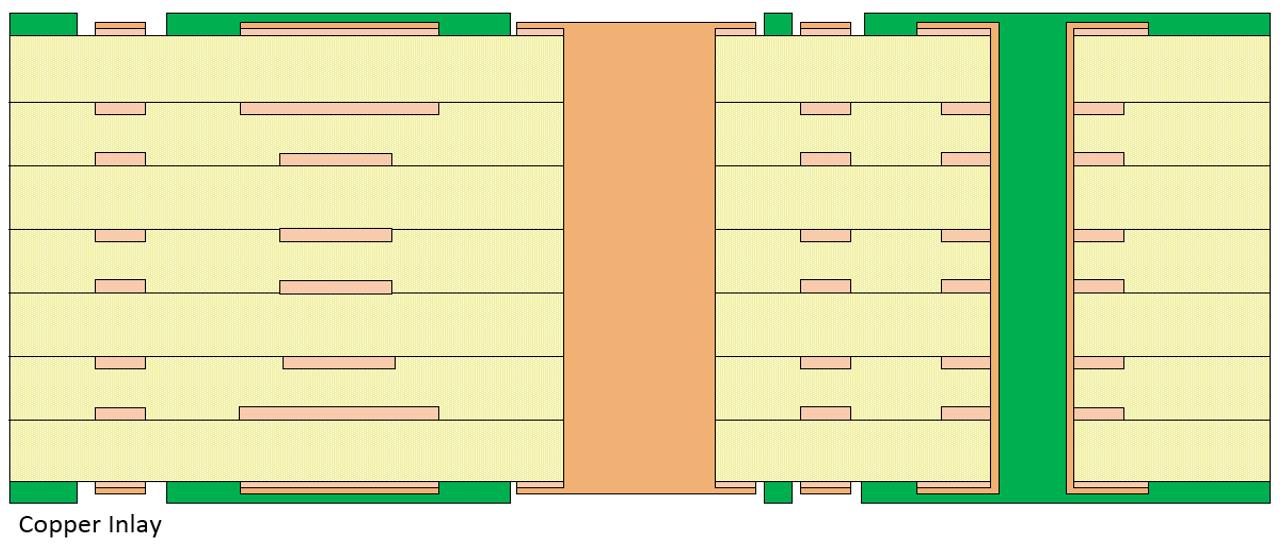

Stack-up of Copper Inlay
