High Layer Count PCBs

High layer count PCBs, widely found in switches, AI servers, general-purpose servers, data storage, GPS technology, satellite systems, weather analysis and medical equipment are usually ≥12L with special performance requirement raw material.

Kinwong capabilities are as follows:

  • Max. Layer: 80 layers
  • Material: Ultra Low Loss M8/M9, Ultra Low Loss M7, Very Low Loss M6, Low Loss M4, Medium Loss M2
  • High Layer Count HDI PCBs​
  • High Layer Count Optical Module
  • Max. Aspect Ratio: 40:1
  • Trace Width/Spacing:40/40μm
  • Layer Registration Tolerance: 4mil
  • Back-Drill Stub Length: 0-4mil
  • Impedance Tolerance: ±7%
  • Insert Loss: SET2DIL /Delta L / VNA
  • Embedded Capacitor/Resistance/Copper Coin
Stack-up of HLC PCB

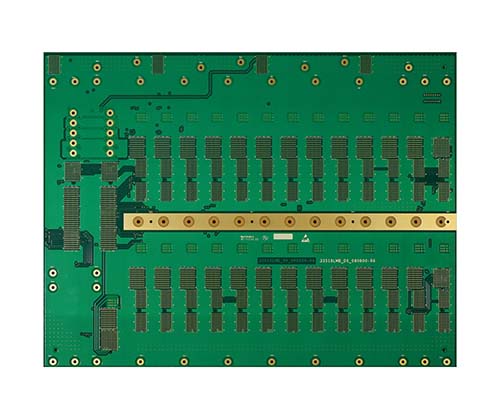

HLC High Layer Count PCBs (2)
